Canada’s Yamamoto rock splitter distributor
Expand your business’ possibilities by bringing 30 years of innovation to profit. The rock splitter is a proven alternative to conventional rock excavation.

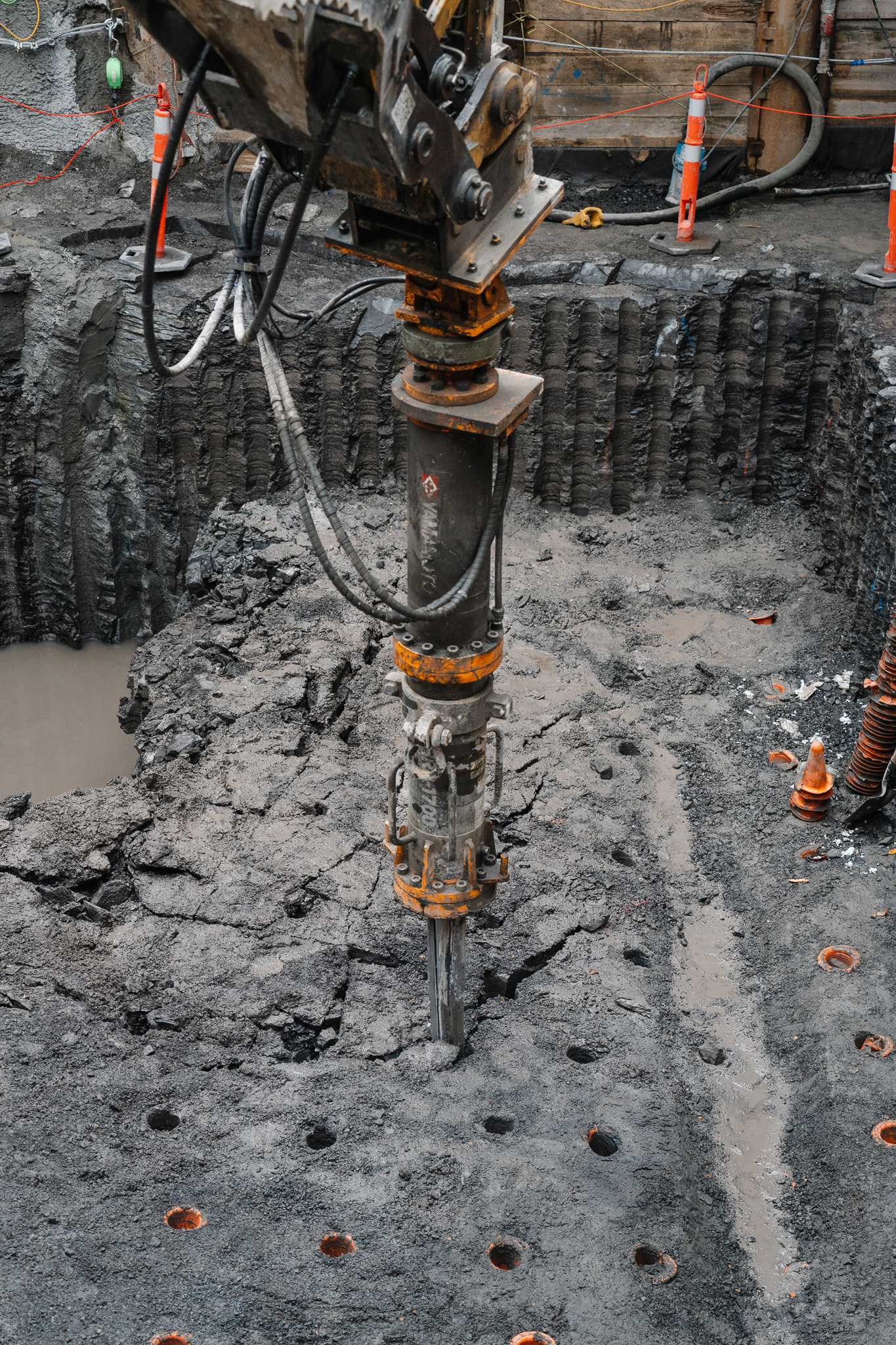

ROCK EXCAVATION BY HYDRAULIC ROCK SPLITTER
Hydraulic Rock Splitter was designed as a mean to excavate hard rock without any concerns for vibrations, flyrock or noise. The method is based on the traditional wedge and feather method but is using hydraulic power to split the rock instead of impact force. It’s the perfect alternative to blasting in densely populated and sensitive areas.
- Vibration-free
- Projection-free
- Environnemently friendly (zero emission)
- Predictable
- Constancy
- Silent operation
HOW IT WORKS
The working principle of the rock splitter is based on two counter wedges inserted in a pre-drilled hole. A hydraulic cylinder pushes out a center wedge between the counter wedges to spread them apart and the rock is forced to crack.
-
1st Step :
Insert half of the total length of the wedge and operate the Yamamoto splitter to split.
-
2nd Step :
Then insert about ¾ of the total length of the wedge to split again.
-
3rd Step :
Finally, insert the total length of the wedge and split to complete.
AVAILABLE MODELS
| Model | HRB-1000 | HRB-1700 |
|---|---|---|
| Weight | 650 kg | 1,500 kg |
| Drill hole diameter | Ø 102 mm | Ø 127 mm |
| Drill hole depth | 1,500 mm | 2,500 mm |
| Splitting force | 22MN (2,250 ton) | 34MN (3,550 ton) |
| Splitting distance | 25 mm | 30 mm |
| Wedge diameter | Ø95 mm to 110 mm | Ø120 mm to 160 mm |
| Wedge length (A) | 1,150 mm | 1,850 mm |
| Splitter length (B) | 3,000 mm | 4,300 mm |
| Cylinder length (C) | 1,850 mm | 2,450 mm |
| Hydraulic pressure (min/max) | 350/500 bar | 350/500 bar |
| Excavator Weight (Tons) | 12+ | 20+ |
| Standard split hole spacing | 500 x 500 mm | 700 x 700 mm |
